Chassis

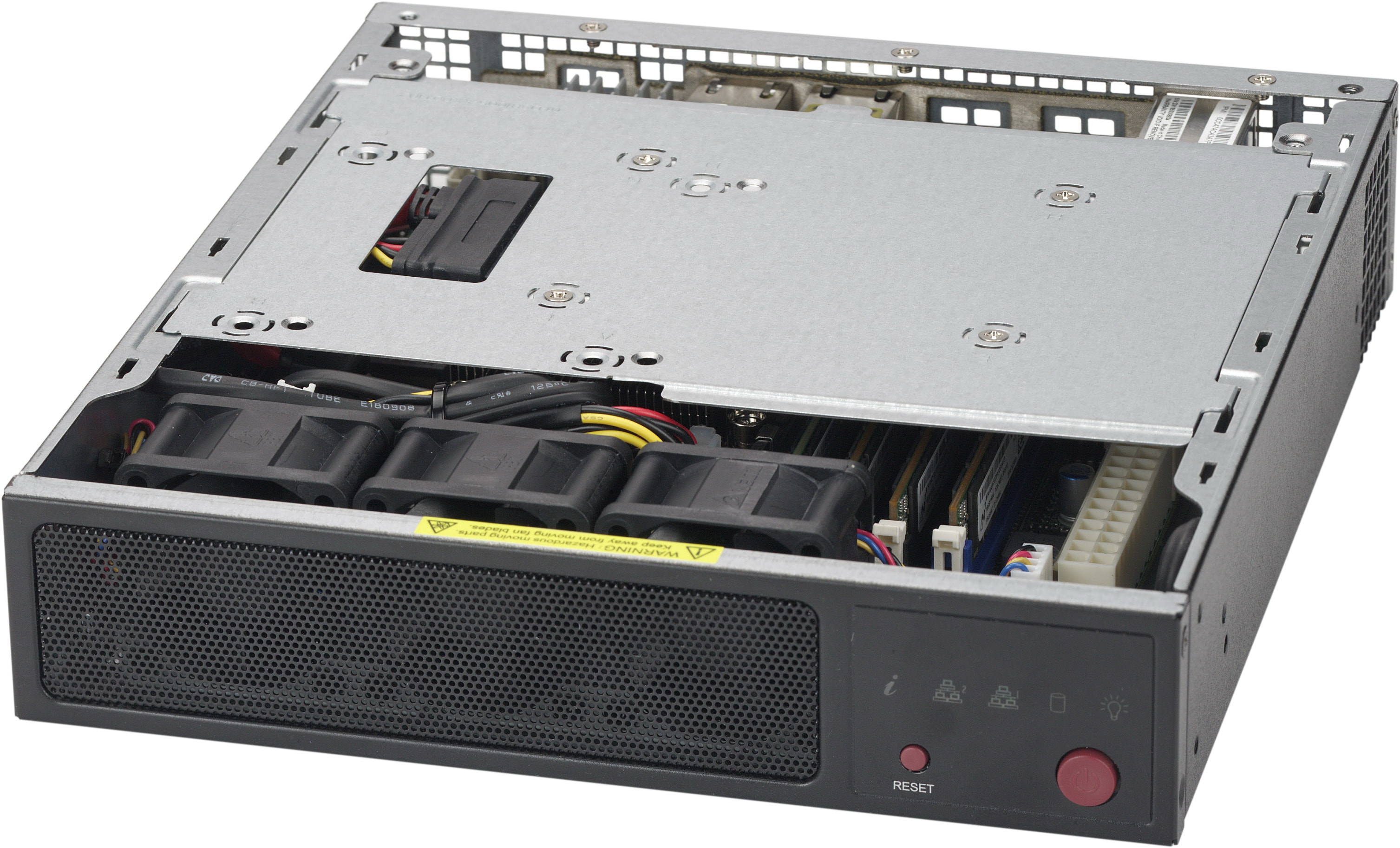

CSE-101F

Key Features


  1. Compact Desktop BOX Server PC
  2. Embedded Appliance Chassis
  3. Optimized for Server Mini-ITX Motherboard
  4. Support 1x 2.5 fixed drive
  5. Power Switch, Reset Button and LED Indicators

Specifications
Product SKUs
CSE-101F
  • SuperChassis 101F

Form Factor
  • Mini-ITX 6.75" x 6.75"

Processor Support
  • Single Intel® and AMD processors

Dimensions
Height
  • 1.7“ (43 mm)
Width
  • 7.6“ (193 mm)
Depth
  • 8.9“ (226 mm)
Gross Weight
  • 7.5 lbs (3.4 kg)
Net Weight
  • 2.76 lbs (1.25 kg)
Packaging (W x H x L)
  • 15“ (381 mm) x 10.87“ (276 mm) x 5.59“ (142 mm)
Available Color
  • Black

Drive Bays
  • 1x 2.5" fixed drive bay

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Unit Identification (UID) LED
Systems Cooling
Fans
  • 1x 4cm high performance PWM fan(s)
  • Optional 2x 4cm high performance PWM fan(s)

Operating Environment (System)
Operating Temperature Range
  • 0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)

Power Supply
Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board
Certification
  • N/A

Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC
  • TUV/CB
  • UL/CUL
Parts List
Standard Parts List
  Part Number Qty Description
Part(s) MCP-210-10101-0B 1
Part(s) MCP-230-10101-0B 1
Part(s) MCP-240-10103-0B 1
Part(s) MCP-270-10103-0B 1
Fan(s) FAN-0065L4 1 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Cooling Fan & Accessory MCP-320-10101-0N 1
Part(s) MCP-260-30001-0B 1
Optional Parts List
  Part Number Qty Description
Cable CBL-CUSB-0975 - RJ45 SERIAL Cabel for Console
Chassis parts MCP-290-10110-0B - CSE-101F Rackmount kit
MCP-290-10108-0B - Dual system tray for Mini-ITX system
Fan Kit FAN-0065L4 • - 4028mm 13K RPM 4-PIN PWM FAN
IO shield MCP-260-10107-0B - CSE-101F, E300 Rear I/O for A1SAi And A1SRi
Power Adapter MCP-250-10117-0N • - 60W DC power adapter with US power cord 18AWG 6ft
MCP-250-10122-0N - 84W DC power adapter with US power cord 18AWG 6ft
Servers (for CSE-101F)
SYS-E200-8D SYS-E200-9A
Motherboard (for CSE-101F)
X12SCV-W M11SDV-4CT-LN4F
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
