Storage

SSG-631E-E1CR16H

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

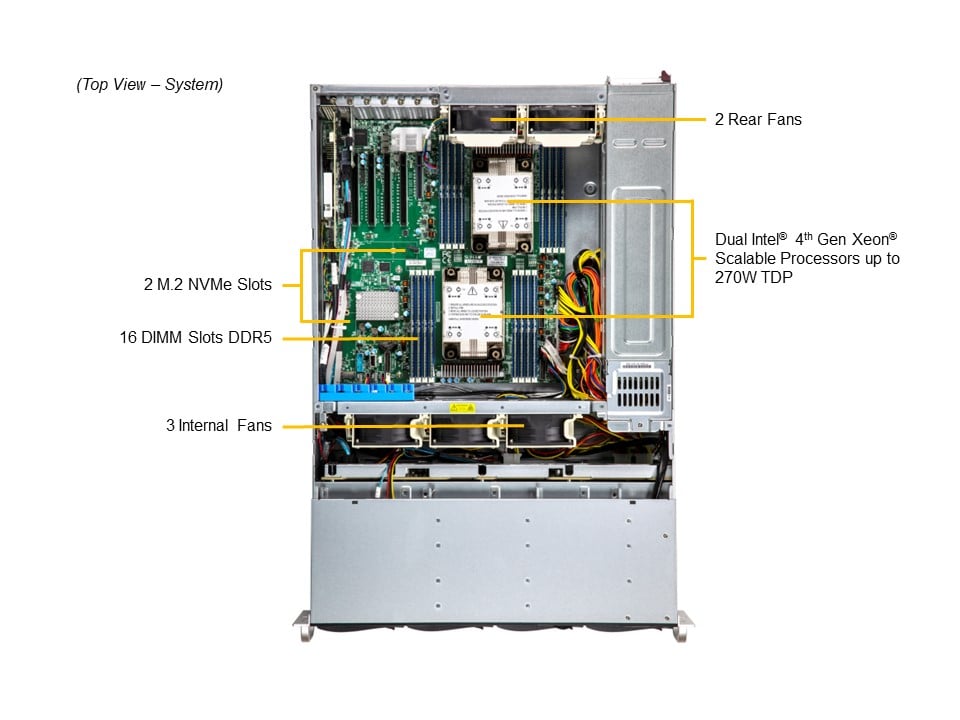

  1. Dual socket 4th Gen Intel® Xeon® Scalable processors
  2. Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM slots
  3. 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    2x 10 GbE onboard via Broadcom BCM57416
  4. 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
  5. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 1200W Redundant Power Supplies Titanium Level (96%)
  7. HW RAID support via Broadcom® 3908
Specifications
Product SKUs
SuperServer SSG-631E-E1CR16H (Silver)
Motherboard
Super X13DEI-T
Processor
CPU
Note
  • Supports 120W - 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 RDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • 2x 10GbE BaseT with Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

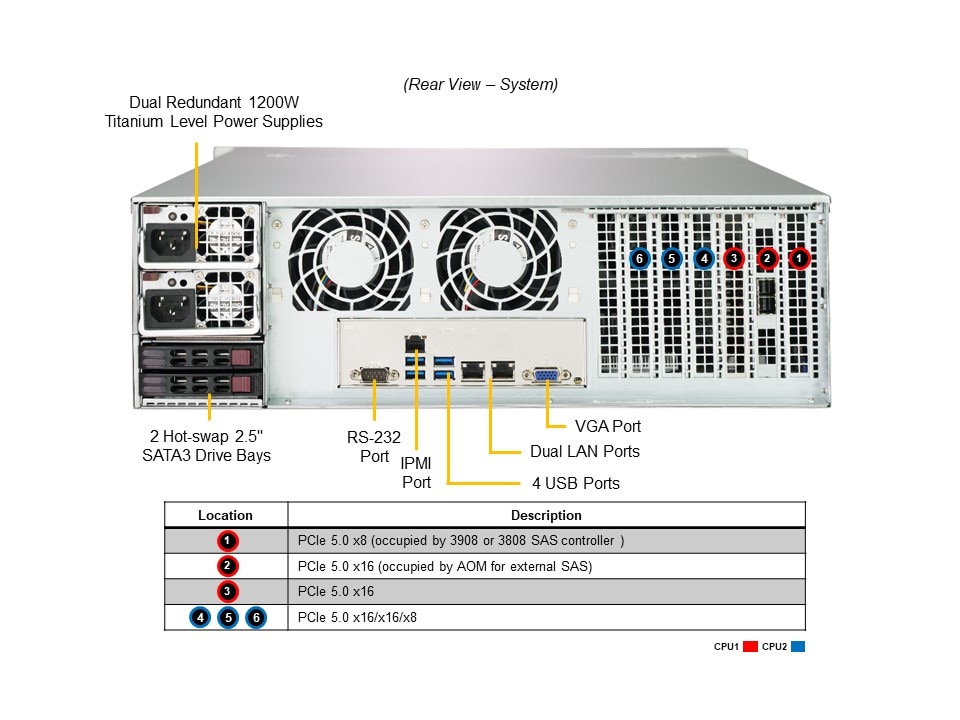

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 Onboard 10 GbE LAN Ports
USB
  • 4 USB 3.0 port(s) (4 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-836BTS-R1K23BP2
Dimensions and Weight
Height
  • 5.2"
Width
  • 17.2"
Depth
  • 25.5"
Package
  • 13" (H) x 27" (W) x 35" (D)
Weight
  • Gross Weight: 79 lbs (48 kg)
Available Color
  • Silver

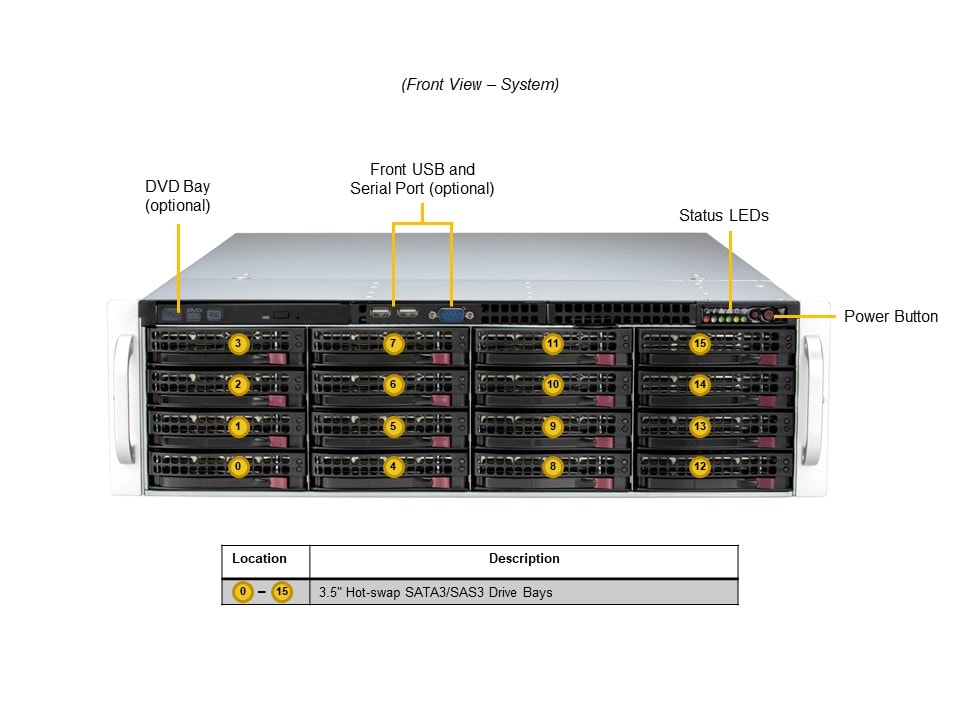

Front Panel
Buttons
  • Power On/Off
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x8 LP slot(s)
  • 4 PCIe 5.0 x16 LP slot(s)
Note
  • PCIe slot 1 & 2 are occupied by the Storage Controller/JBOD Expansion Module
Drive Bays / Storage
Hot-swap

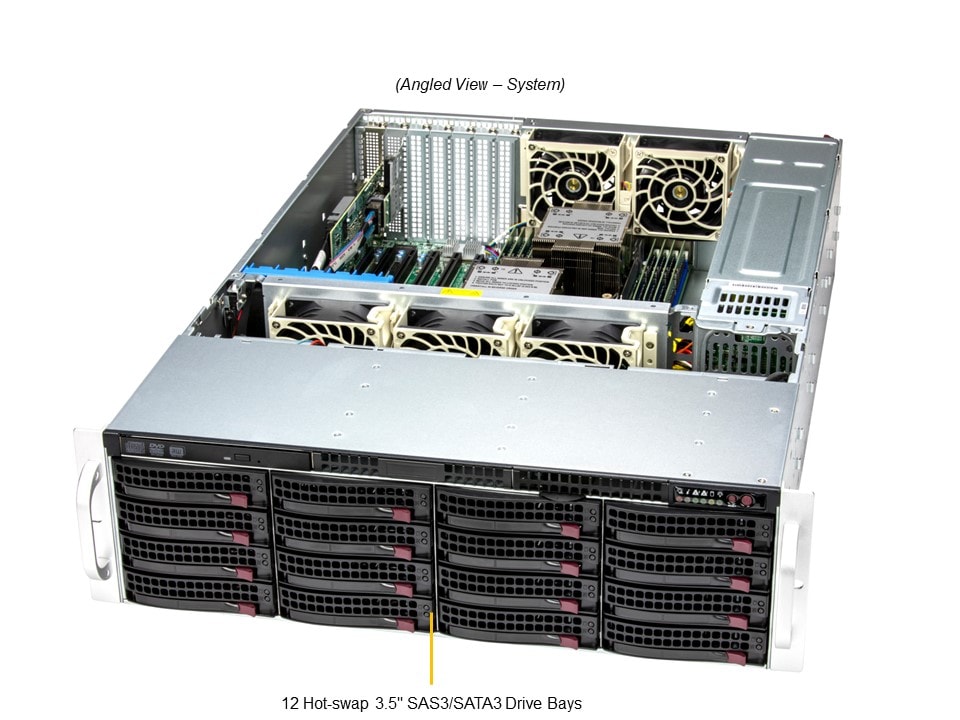

  • 16x 3.5" hot-swap SATA3/SAS3 drive bays (2x 2.5" hot-swap SATA3 rear drive bays)
M.2
  • 2 M.2 NVMe
  • M-Key, 2280 and 22110
System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)
Power Supply
1200W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vdc-240Vdc)
  • Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DEI-T

CSE-836BTS-R1K23BP2
1

1
Super X13DEI-T Motherboard

3U Chassis
Add-on Card / Module AOC-S3908L-H8IR-P 1 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHS
AOM-SAS3-8I8E 1 8-port Mini SAS HD Int-to-Ext Cable Adapter w/FH Bracket
Backplane BPN-SAS3-836EL1 1 (EOL)SAS3 12Gb/s Single Expander backplane with 16 SAS3 3.5"
Cable CBL-SAST-0532 2 Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-PWEX-1069 1 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
CBL-PWEX-1078 4 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Parts MCP-260-00042-3N 1 STD I/O shield for X13 server MB with venting holes
MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835
Front Panel MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Air Shroud MCP-310-83601-0B 1 Mylar air block for SC836(X11DPH-T),RoHS
MCP-310-83602-0B 1 Mylar air shroud for SC836(X13DEI-T)
MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 2 2U Passive CPU HS for X13 Intel Eagle Stream Platform
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
*Fan FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
FAN-0212L4 2 80x80x32 mm, 9.7K RPM Rear Exhaust Fan for SC836B and SC846B
*Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5“ HDD tray
*Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N)
*Peripheral Drive MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2“W
MCP-410-00007-0N 1 Rail screw bag
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Converter Tray MCP-220-00043-0N • - 2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY
Front USB3.0 & COM Ports Tray MCP-220-00129-0B - Black 2x USB3.0/COM port tray in slim FDD bay, with both side of rails/brackets
Network Cards AOC-STG-b2T-O - Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
AOC-S25G-M2S-O • - Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN
AOC-S25G-i2S-O - Std. Low Profile 25G dual port SFP28, based on Intel XXV710
AOC-S25G-b2S-O - Std LP 2-port 25G SFP28, Broadcom BCM57414
AOC-STGS-i2T-O - Std LP 2-port 10G RJ45, Intel X550
Power Cord CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Supercap - Battery BTR-CVPM05 - Cachevault supercap for storage controller
Supercap - Battery Holder MCP-240-00203-0N - PCIe plastic battery holder with FH/LP-bracke
TPM AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor, provisioned for server
VROC AOC-VROCSTNMOD - Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS
AOC-VROCPREMOD • - Intel VROC Premium, RAID0,1,5,10,HF,RoHS
