Storage

ASG-1115S-NE316R

Key Applications

  • Software-defined Storage
  • In-Memory Computing
  • Data Intensive HPC
  • Private & Hybrid Cloud
  • NVMe Over Fabrics Solution

Key Features

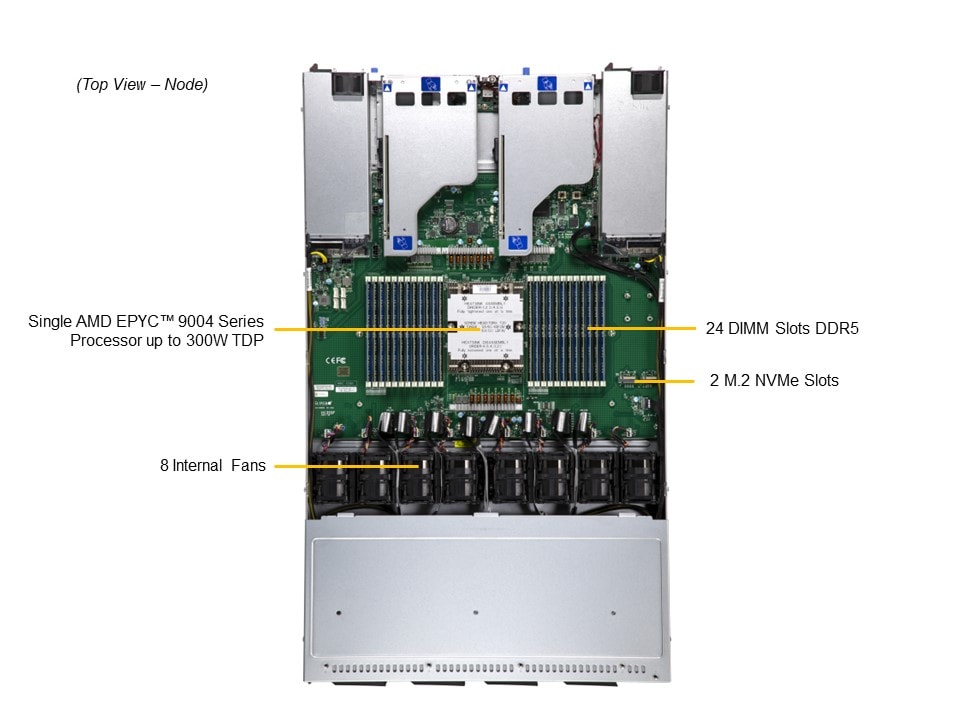

  1. Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 300W TDP.
  2. Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
  3. Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)

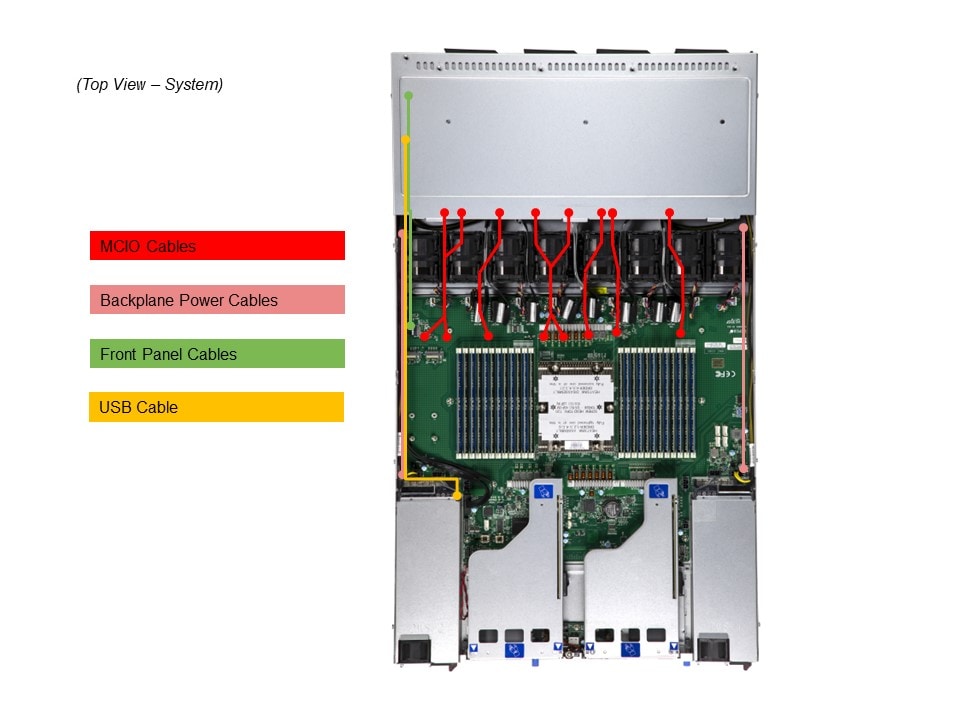

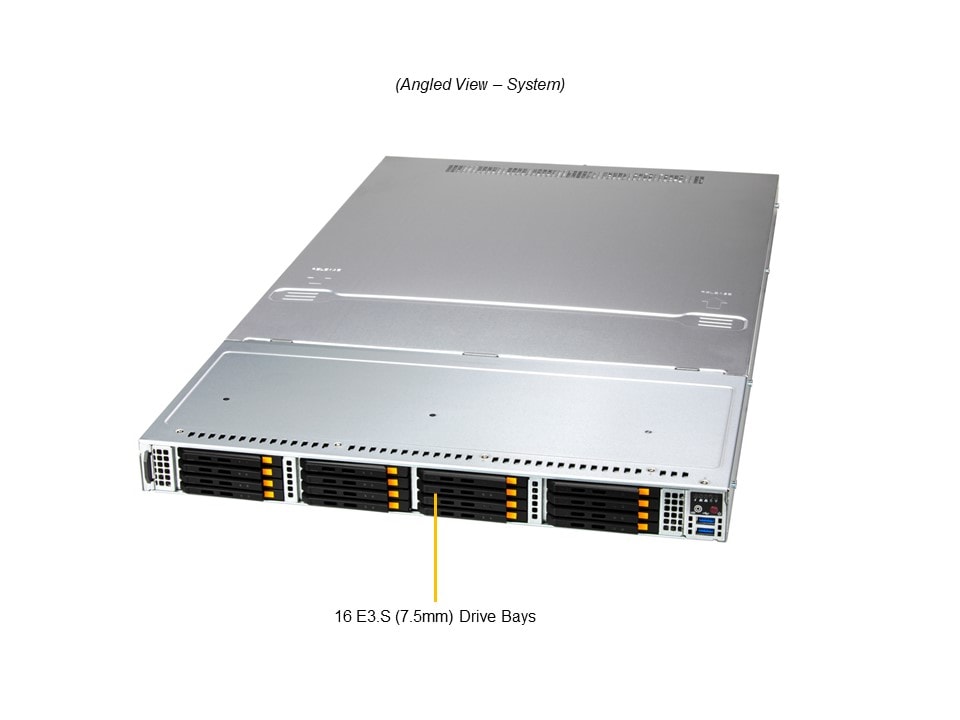

  4. 16x hot-swap E3.S (7.5mm) NVMe drive bays
  5. Redundant Titanium 1600W Power Supplies
Specifications
Product SKUs
A+ Server ASG-1115S-NE316R (Silver)
Motherboard
Super H13SSF
Processor
CPU
Core Count
  • Up to 96C/192T
Note
  • Supports 200W - 300W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 24 DIMM slots
  • Up to 6TB: 24x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 RDIMM;LRDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

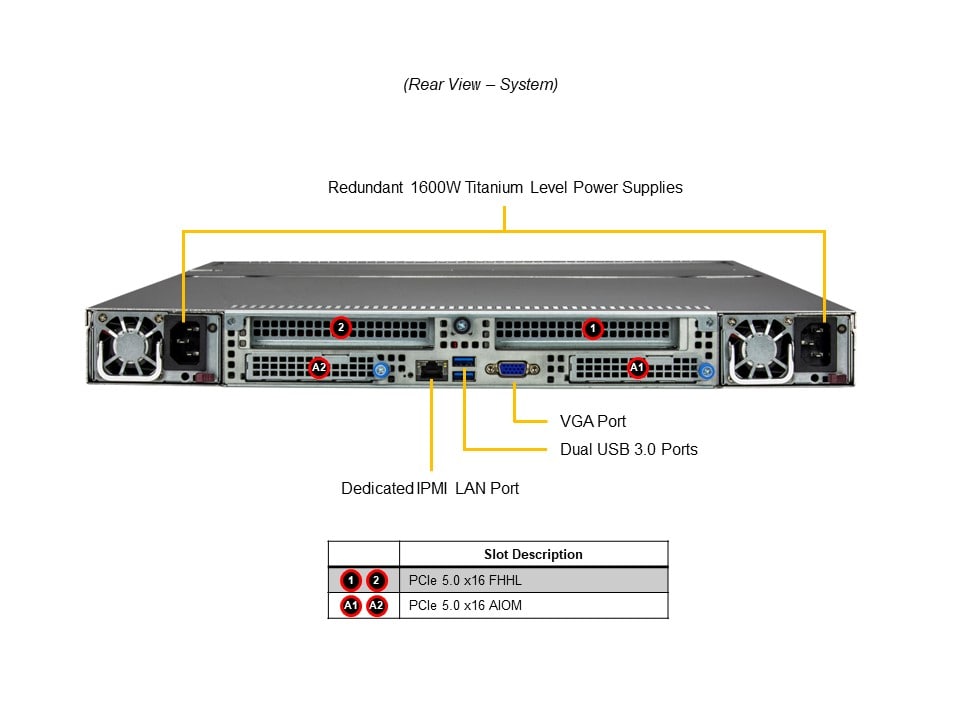

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 port(s) (2 front; 2 rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-126E32-R1K62P
Dimensions and Weight
Height
  • 1.7" (43.6mm)
Width
  • 17.2" (438.4mm)
Depth
  • 30.4" (773.25mm)
Package
  • 7.87" (H) x 23.81" (W) x 40.55" (D)
Weight
  • Net Weight: 48 lbs (21.8 kg)
  • Gross Weight: 68.74 lbs (31.2 kg)
Available Color
  • Silver

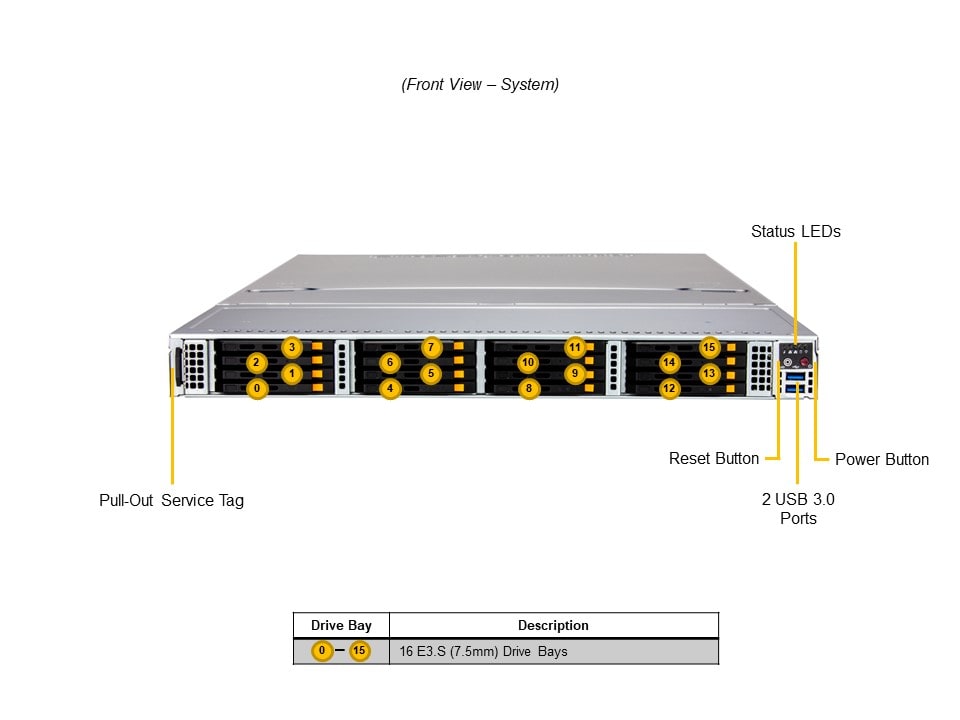

Front Panel
Buttons
  • Power On/Off
LEDs
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FH slot(s)
  • 2 PCIe 5.0 x16 AIOM slot(s)
Drive Bays / Storage
Hot-swap
  • 16x E3.S Hot-swap NVMe (1T/2T) drive slots
M.2
  • 2x PCIe 3.0 (NVMe slots)
  • M-Key, 2280 and 22110
System Cooling
Fans
  • 8 Heavy Duty 4cm Fan(s)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-condensing)
  • Non-operating Relative Humidity:
       8% to 95% (Non-condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SSF

CSE-126E32-R1K62P
1

1
Super H13SSF Motherboard

1U Chassis
Add-on Card / Module AOM-DSF-IO-P 1 AOM BMC LAN/VGA/USB/COM IO Board
Backplane BPN-E3S5-126ESN 2 1U 8 slots of PCIe GEN5 4-lane E3.S backplane,RoHS
Cable CBL-MCIO-1330LFM5FY 1 MCIO (x8 STR/LF to 2 x4 STR), FFC, 30cm, 30AWG, RoHS
CBL-MCIO-1331LFM5FY 1 MCIO (x8 STR/LF to 2 x4 STR), FFC, 31cm, 30AWG, RoHS
CBL-MCIO-1334LFM5FY 3 MCIO (x8 STR/LF to 2 x4 STR), FFC, 34cm, 30AWG, RoHS
CBL-MCIO-1335LFM5FY 3 MCIO (x8 STR/LF to 2 x4 STR), FFC, 35cm, 30AWG, RoHS
CBL-PWEX-1136-70 2 MicroHi (2x2F to 2x4F), PH3.0, 70cm, 10A/p,16#,RoHS
CBL-SAST-1215X-85 1 SlimSAS (x8 to x8),STR,XMap,15cm,32#,85 Ohm,RoHS
Air Shroud MCP-310-12603-0N 1 SC126ES2 Air Shroud (CPU &DIMM) modular for AMD H13SSF
MCP-310-12601-0N 1 SC126ES2 PWS Air Shroud (Left & Right) modular
Riser Card RSC-X-6G5 2 1U LHS Storage riser card with one PCIe 5.0 X16 slot,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P2082PV-1 1 1U Passive SP5 EVAC CPU HS for H13 1U UP Petascale Server
*Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
*Fan FAN-0210L4 8 40x40x56 mm, 29.5K-25.5K RPM, Counter-rotating Fan, RoHS
*Front Panel FPB-FP118GQE-T-75 1 Front control board with temperature sensor for SC126ES2
*Rear Window MCP-240-12602-0N 1 Rear window for SC126ES2
*Rail Set MCP-290-11814-0N 1 Short rail set, quick/quick, auto latch, for 1U 17.2W No CMA support
*Fan Holder MCP-320-12601-0B 2 Fan holder for 4pcs 40x56 fan for SC126ES2
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Network Cards AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
More - AOC Compatibility Matrix (Select Storage & Generation)
Power Cord CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
TPM AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-S-O 1 TPM 1.2, vertical form factor, provisioned for server
